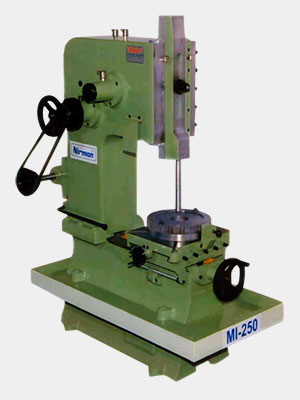

  Slotting Machine MI-250
  Slotting Machine - MI 250

"Nirman" Brand Slotting Machine is suitable for machning internal keyway in Pulley, Gears etc. All the parts are made from selected materials, properly tested with its accurate size. Helical Gear set is provided for better Quality and Perfections required in workshop

  Machine Features

MODEL MI-250
Working Stroke 10mm TO 250mm
Longitudinal Traverse 245mm
Cross Traverse 85mm
Speed Adjustment 3 Speed
Ram Adjustment UPTO 250mm
Motor Required 1.5 H.P.
A- Distance from Body to Ram 310mm
B- Distance from Body to T-SLOT SLIDE 370mm
C- T-SLOT Table Size 280mm X 330 mm
Standard Accessories : gray  Boring Bar gray  B-Section Motor Pulley
Extra Accessories : gray Rotary Table with 36:1 Ratio Diameter 250mm
  gray Electric Motor gray Switch
  gray True Chuck gray V-Belts
