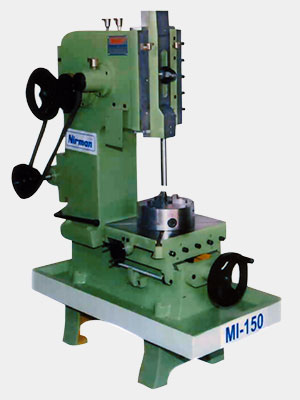

  Slotting Machine MI-150
  Slotting Machine - MI 150

"Nirman" Brand Slotting Machine is suitable for machning internal keyway in Pulley, Gears etc. All the parts are made from selected materials, properly tested with its accurate size. Helical Gear set is provided for better Quality and Perfections required in workshop

  Machine Features


MODEL MI-150
Working Stroke 10mm TO 150mm
Longitudinal Traverse 125mm
Cross Traverse 75mm
Speed Adjustment 3 Speed
Ram Adjustment UPTO 150 mm
Motor Required 1 H.P.
A- Distance from Body to Ram 200mm
B- Distance from Body to T-SLOT SLIDE 330mm
C- T-SLOT Table Size 280mm X 330mm
Standard Accessories : gray  Boring Bar gray  B-Section Motor Pulley
Extra Accessories : gray Rotary Table with 36:1 Ratio Diameter 250mm
  gray Electric Motor gray Switch
  gray True Chuck gray V-Belts
